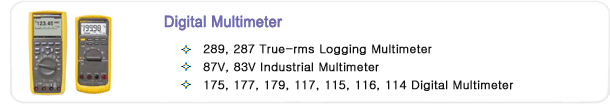

main > (신품계측기) Fluke > Digital Multimeter








Functions

Range and Resolution

Basic Accuracy

DC volts
AC volts

50.000mV, 500.00mV, 5.0000V, 50.000V,
500.00V, 1000.0V

0.025%
0.4% (true-rms)

DC current
AC current

500.00µA, 5000.0µA, 50.000mA, 400.00mA,
5.0000A, 10.000A

0.15%
0.7% (true-rms)

Temperature (excluding probe)

-200.0℃ to 1350.0℃ (-328.0℉ to 2462.0℉)

1.0%

Resistance

50.000Ω, 500.00Ω, 5.0000kΩ, 50.000kΩ, 5.0000MΩ, 50.00MΩ, 500.0MΩ

0.05%

Capacitance

1.000nF, 10.00nF, 100.0nF, 1.000µF, 10.00µF, 1000µF, 10.00mF, 100mF

1.0%

Frequency

99.999Hz, 999.99Hz, 9.9999kHz, 99.999kHz, 999.99kHz

0.005%



Functions

Range and Resolution

Basic accuracy

87V

83V

DC volts

600.0mV, 6.000V, 60.00V, 600.0V, 1000V

0.05%

0.1%

AC volts

600.0mV, 6.000V, 60.00V, 600.0V, 1000V

0.7%(true-rms)

0.5%

DC current

600.0µA, 6000µA, 60.00µA, 600.0mA, 6.000A, 10.00A

0.2%

0.4%

AC current

600.0µA, 6000µA, 60.00µA, 600.0mA, 6.000A, 10.00A

1.0% (true-rms)

1.2%

Temperature (excluding probe)

-200℃ to 1090℃ (-328℉ to 1994℉)

1.0%



80BK Temperature
Probe

-40℃ to 260℃ (-40℉ to 500℉)

2.2℃ or 2%



Resistance

600.0Ω, 6.000kΩ, 60.00kΩ, 600.0kΩ, 6.000MΩ, 50.00MΩ

0.2%

0.4%

Capacitance

10.00nF, 100.0nF, 1.000µF, 10.00µF, 100.0µF, 9.999µF

1.0%

1.0%

Frequency

199.99Hz, 1.9999kHz, 19.999kHz, 199.99kHz

0.005%

0.005%



Functions

Range and Resolution

Basic accuracy

DC voltage

600.0mV, 6.000V, 60.00V, 600.0V, 1000V

±0.09%(Models 177 anc 179)
 ±0.15%(Model 175)

AC voltage*1

600.0mV, 6.000V, 60.00V, 600.0V, 1000V

±1.0% of reading

DC current

60.00mA, 400.0mA, 6.000A, 10.00A*2

±1.0% of reading

AC current

60.00mA, 400.0mA, 6.000A, 10.00A*2

±1.5% of reading

Resistance

600.0Ω, 6.000kΩ, 60.00kΩ, 600.0kΩ, 6.000MΩ, 50.00MΩ

±0.9% of reading

Capacitance

1000nF, 10.00µF, 100.0µF, 9999µF

±1.2% of reading

Frequency*3

99.99Hz, 999.9Hz, 9.999Hz, 99.99kHz

±0.1% of reading

Temperature(Model 179)

-40℃ to +400℃ (-40℉to +752℉)

1.0% of reading

*1All ac voltage and ac current ranges are specified from 5% of range to 100% of range
*210A continuous, 20A for up to 30 seconds
*3Voltage frequency is specified from 2Hz to 100kHz. Current Frequency is specified from 2Hz to 30kHz.



Functions

Range and Resolution

Basic accuracy

Volts ac/dc

600V

0.5% + 2

Current ac/dc

10A

1.0% + 3

Resistance

40MΩ

0.9% + 2

Capacitance

1nF to 9,999µF

1.9% + 2

Frequency

5Hz to 50kHz

0.1% + 2

Diode

2V

0.9% + 2



Functions

Range and Resolution

Basic accuracy

Volts ac/dc

600V

0.5% + 2

Current ac/dc (116 only)

600.0µA

1.0% + 2

Temperature (116 only)

+400℃

1.0% + 18

Resistance

40MΩ

0.9% + 2

Capacitance (116 only)

1nF to 9,999µF

1.9% + 2

Frequency (116 only)

5Hz to 50kHz

0.1% + 2

Diode (116 only)

2V

0.9% + 2
