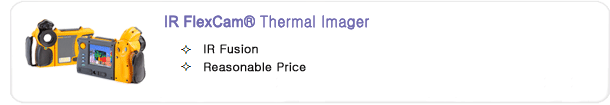

main > (신품계측기) Fluke > IR FlexCam® Thermal Imager







Functions

Ti40FT

Ti45FT

Ti50FT

Ti55FT

Field of view(FOV)

23° horizontal x 17° vertical

Spatial resolution (FOV)

2.60 mrad

1.30 mrad

Min focus distance

0.15m

Thermal sensitivity (NETD) at 30℃

≤0.09℃

≤0.08℃

≤0.07℃

≤0.05℃

Detector data acquisition/image frequency

30Hz/30Hz

60Hz/60Hz

Detector size

160 x 120

320 x 240

Calibrated temperature range

-20℃ to 350℃

-20℃ to 600℃

-20℃ to 350℃

-20℃ to 600℃

1200℃ High temperature option



o





Accuracy

±2℃ or 2% (whichever is greater)

Digital display

5" lager high-resolution backlight LCD

Video output

RS170 EIA/NTSC or CCIR/PAL composite video

Palettes

Grayscle, grayscale inverted, blue red, high contrast, hot metal, ironbow, amber, amber inverted

Storage medium

Compact flash card(512Mb) stores over 1000 IF images

File formats supported

14bit measurement data included. Images : bmp, gif, jpg, png, tiff;
Data formats : comma separated (csv), tab separated (txt)

Interface

Compact flash card reader included

Included software

SmartView : Full analysis and reporting software
