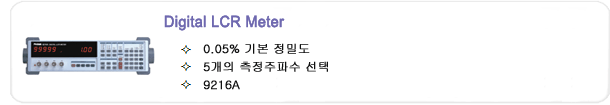

main > (½ÅÇ°°èÃø±â) Protek > Digital LCR Meter







Specifications (9216A)

Measurement Modes

Auto, R+Q, L+Q, C+D, C+R

Equivalent Circuit

Series or Parallel

Parameters Displayed

Value, Deviation, % deviation or Bin Number.
Deviation and % deviation are calculated from a stored relative value.

Averaging

2~10 Measurement

Measurement Range

R+Q R 0.0001§Ù ~ 2000§Ù              Q0.00001 ~ 50
L+Q L 0.0001µH ~ 99999H            Q0.00001 ~ 50
C+D C 0.0001pF ~ 99999µF           D0.00001 ~ 10
C+R C 0.0001pF ~ 99999µF           R0.00001 ~ 99999k§Ù

Test Frequency

10Hz, 120Hz, 1kHz, 10kHz, 100kHz

Frequency accuracy

±100ppm

Drive Voltage

0.1V, 0.25V, 1Vrms

Drive levels accuracy

±2%

Measurement Rate

Slow, Medium, Fast : 2, 10 or 20
measurements per second at test frequencies of 1kHz and above and about
0.6, 2.4, or 6 measurements per second at 100Hz and 120Hz.

Ranging

Auto or Manual

Triggering

Through External Trigger, Continuous, Manual or Remote over RS232, GPIB or Handler Interface

Bias Voltage

Internal -> 2.0 VDC ±2%          External -> 0 to +40VDC (fused @ 0.25A)

Conditions

At least 30 minute warm up, 23¡É±5¡É

Basic Accuracy

0.05%

Standard Accessory

Ridial Fixture

Optional  Accessory

Kelvin Clips or SMD Tweezers
