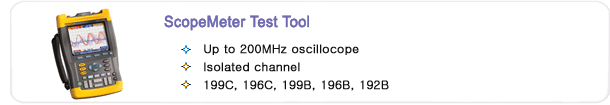

Fluke 199C
|
Fluke 196C
|
Fluke 199B
|
Fluke 196B
|
Fluke 192B
|
|
Bandwidth
|
200MHz
|
100MHz
|
200MHz
|
100MHz
|
60MHz
|
|
Max real time sample rate
|
2.5GS/s
|
1.0GS/s
|
2.5GS/s
|
1.0GS/s
|
0.5GS/s
|
|
Max record length (per input)
|
3000 points
|
|
Number of Inputs
|
2 Scope and 1 DMM (Isolaed)
|
|
Independently isolated floating inputs
|
2mV/div to 100V/div
|
5mV/div to 100V/div
|
|
Display and display modes
|
|
Display
|
Color
|
Monochrome
|
|
Persistence
|
Digital with variable decay
|
On/Off
|
|
Envelope mode
|
o
|
|
Waveform compare
|
o
|
|
FFT
|
o
|
|
|
|
|
Pass/fail testing
|
o
|
|
|
|
|
Triggering
|
|
Connect-and-View™ mode
|
o
|
|
Edge, single, free run
|
o
|
|
Video
|
o
|
|
Pulse width
|
o
|
|
External
|
o
|
|
Advanced functions
|
|
Cursors
|
o
|
|
Zoom
|
o
|
|
Dual input Trendplot™
|
o
|
|
ScopeRecord™ mode
|
o
|
|
Automatic capture and replay last 100 screens
|
o
|
|
Waveform mathematics
|
o
|
|
Save setups and screens
|
10
|
|
True-rms multimeter
|
5000 counts, volts, amps, ohms, continuity, diode, temp
|
|
Safety, power
|
|
Safety (EN61010-1)
|
CATII 1000V/CATIII 600V
|
|
Battery
|
4-hour Ni-MH
|
|
Line power
|
Adapter/battery charger included
|
|
PC printer interface
|
Yes, using optional optically isolated cable
|
