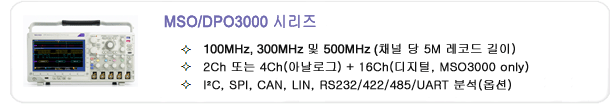

main > (신품계측기) Tektronix > (Oscilloscope) MSO/DPO3000



	DPO3012 MSO3012	DPO3014 MSO3014	DPO3032 MSO3032	DPO3034 MSO3034	DPO3052	DPO3054 MSO3054
아날로그 채널
Bandwidth	100 MHz	100 MHz	300 MHz	300 MHz	500 MHz	500 MHz
Channels	2	4	2	4	2	4
Calculated Rise Time 5mV/div(typical)	3.5ns	3.5ns	1.17ns	1.17ns	700ps	700ps
Sample Rate on Each Channel	2.5 GS/s
Record Length	5  M Points (All Channels)
Hardware Bandwidth Limits	20MHz or 150MHz
Input Coupling	AC, DC, GND
Input Impedance	1MΩ ±1%, 75Ω ±1%, 50Ω ±1%
Input Sensitivity Range, 1MΩ	1 mV/div to 10 V/div
Input Sensitivity Range, 75Ω, 50Ω	1 mV/div to 1 V/div
Vertical Resolution	8 bits(11 bits with Hi-Res)
Max Input Voltage(1MΩ)	300 VRMS with peaks ≤ ±450 V
Max Input Voltage, 75Ω, 50Ω	5 VRMS with peaks ≤ ±20 V
DC Gain Accuracy	± 1.5% with offset set to 0 V
디지털 채널
Sample Rate (Standard)	500MS/s (All Channel)
Record Length (Standard)	5M Point
Sample Rate (MagniVu™)	8.25GS/s
Record Length (MagniVu™)	10k Point (based on triggering)
Min. Measuring Pulse width	2.0ns
