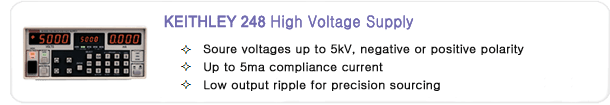

• Source voltages up to 5kV, negative or positive polarity
• Up to 5mA compliance current
• Low output ripple for precision sourcing
• Two selectable filters
• IEEE-488 programmable
• Programmable voltage and current limits
• Compact, half-rack design

Model

248

Number of Channels

1

Power Output

25W

Voltage Output

0~±5000V

Max. Continuous Current Output

5mA

Variable Resistance Output

Current Sink Capacity

1uA

Dynamic Current Measurement

External Triggering for Voltage Outputs and Current Measurement

No

Accuracy

V

0.01%

I

0.01%

Features

Programming

IEEE-488 included

Open Sense Lead Detection

No

DVM

No

Relay Control Port

No

Remote Display Module

No

CE

Yes
