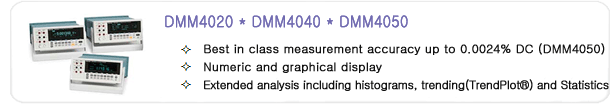

DMM4020
|
DMM4040
|
DMM4050
|
|
Resolution
|
5.5
|
6.5
|
6.5
|
|
DC Accuracy
|
0.015%
|
0.0035%
|
0.0024%
|
|
Inputs
|
2X4 wire front
|
2X4 wire front & rear
|
|
Extended Measurements
|
Frequency
|
Frequency, Period
|
Frequency, Period, Capacitance, Temperature
|
|
Math
|
Null, dBM, dB, Min, Max
|
Null, dBM, dB, Min, Max, Avg, Std Dev., mX+B
|
|
Analysis
|
Limit Compare
|
Limit Compare, TrendPlot, Histogram, Statistics
|
|
Display
|
Dual:Numeric
|
Dual:Numeric & Graphical
|
|
External Storage
|
N/A
|
USB
|
USB
|
|
Connectivity
|
RS232 & USB-RS-232 adapter
|
LAN, GPIB, RS232 & USB-RS-232 adapter
|
|
Transfer Speed (rdgs/s)
|
100
|
1000
|
|
Software
|
NI LABVIEW SignalExpress Tek Edition
|
|
옵션 (별매)
|
|
모델
|
구성/설명
|
|
196-3250-xx
|
Premium Test Leads (standard with product) (replacement or spare for TL710)
|
|
TP750
|
100 OHM RTD Temperature Probe (DMM4050 models only)
|
|
TL705
|
2X4 Wire Ohms 1000V Precision Test Leads
|
|
TL725
|
2X4 Wire Ohms SMD Test Tweezers
|
|
Y8846S
|
Single Rackmount Kit
|
|
Y8846D
|
Dual Rackmount Kit
|
|
AC4000
|
Soft Transit Case
|
|
HCTEK4321
|
Hard Carrying Case
|
|
SIGEXPTE
|
National Instruments LabVIEW SignalExpressTM Tektronix Edition (full edition) software
|
|
